PDF registration colors conversion |
|||
 |
|||

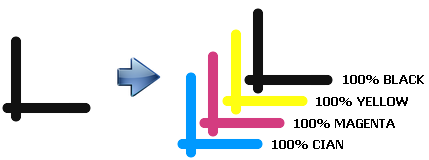

What is the registration color? |
|||
| Information outside the cutting size of the PDF. For example, PDF cutting marks. Components of Registration Color: 100% Cyan, 100% Magenta, 100% Yellow, 100% Black. |
|||
 Cut mark |
|||
When should I convert? |
|||
| If registration text or graphics are located within the cut size. How do I know for sure that there is a registration color problem? If there is no cutting mark and there is a registration color, the PDF is defective. In all other cases, visual inspection is required. |
|||
What happens during the conversion? |
|||
| All registration colors are transformed. New Spot Color Name (Separated colors): SEP. This is 100% black. In case of need, this can be converted to CMYK. (Pantone to CMYK Conversion) |
|||
What to pay attention! |
|||
| If the PDF already has a cutting signal, it will also be 100% black! | |||
What do I do if I already have Crop Marks and I want to delete the registration colors? |
|||
| Step 1: Registration color conversion. Step 2: Delete the PDF cutting mark. "Cutting PDF" modul. Size setting: PDF trim size plus bleed. Step 3: Put up new cutting signals: "Add cut size and crop marks" modul. Size setting: PDF trim size. |
|||
| If you have a problem, write to us. | |||
